Sliding 93
Frame depth 93 mm · 2 or 3 track · sash up to 200 kg
A wide-track sliding system for balcony and terrace openings. The 93 mm frame carries double glazing to 24 mm and takes a tandem roller rated for a 200 kg sash.

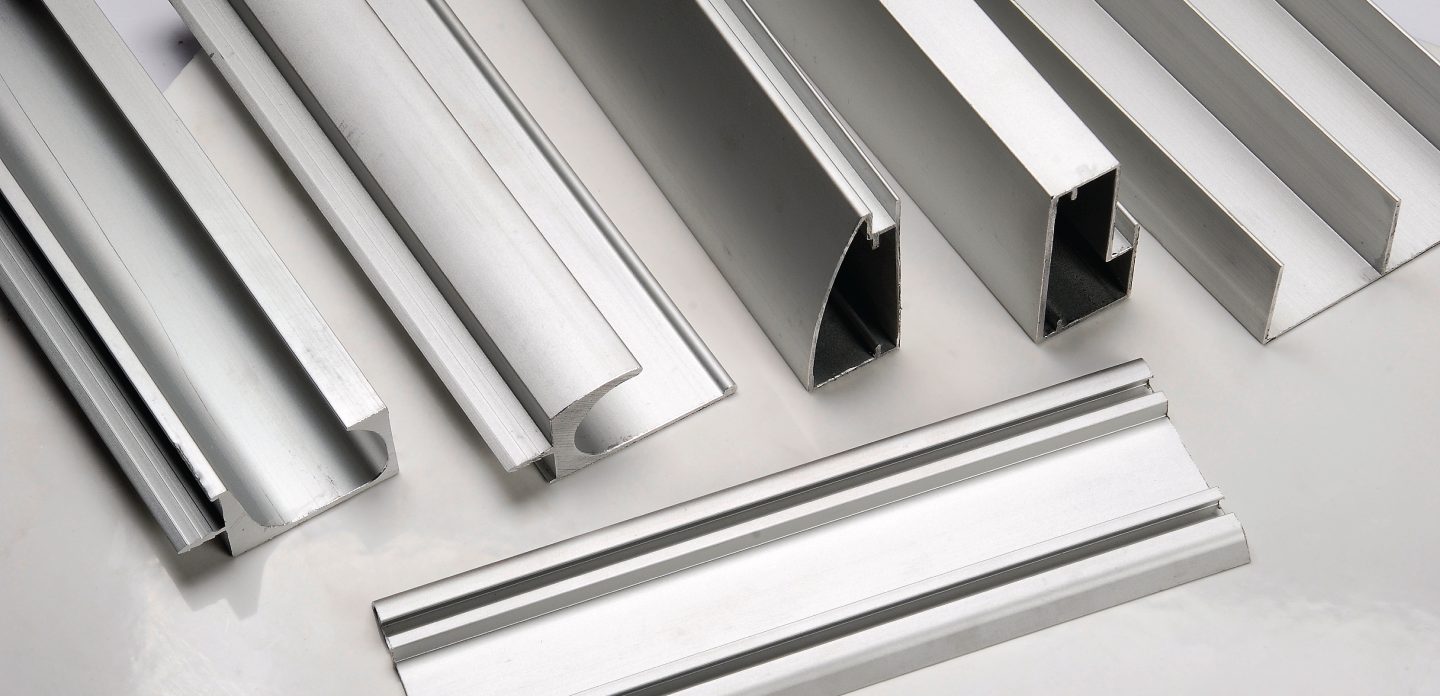

Thermal-break and plain extrusions in 6063-T5, drawn on 1,800-tonne and 2,500-tonne presses.
Every system ships with its own gaskets, drainage and hardware set, so a fabricator receives a complete opening rather than a bundle of bars.
5 products in this family
Casement 55 TB
Frame depth 55 mm · polyamide thermal break 24 mm · Uf 2.1 W/m²K
The volume seller. A 24 mm polyamide strip separates inner and outer shells, which is what brings Uf down to 2.1 and keeps condensation off the inner face in air-conditioned rooms.
Mullion 50
Face width 50 mm · depth 65–250 mm · infill to 32 mm
Stick-system mullion and transom for shopfronts and low-rise glazing. Depth is chosen per span, so one face width covers a single storey or a four-metre atrium bay.
Office Partition 40
Face width 40 mm · single or double glazed · flush both sides
A slim demountable partition for fit-outs. Both faces sit flush with the glass, so the same profile reads identically from either side of the wall.
Industrial Extrusion
6061-T6 and 6082-T6 · to 12 m · mill, anodised or powder
Structural sections drawn to customer dies: solar mounting rails, conveyor frames, heat sinks and machine beds. Dies are cut in-house, first samples in 18 days.
Other families: FacadeFurnitureDoor's AccessoryCar's AccessoryHoneycomb
