3D Adjustable Hinge
Leaf to 130 kg · ±3 mm on three axes · 25,000 cycles
Adjustable after installation on all three axes, which is what lets a door be squared against an opening that moved after the frame went in.
Products / Door's Accessory

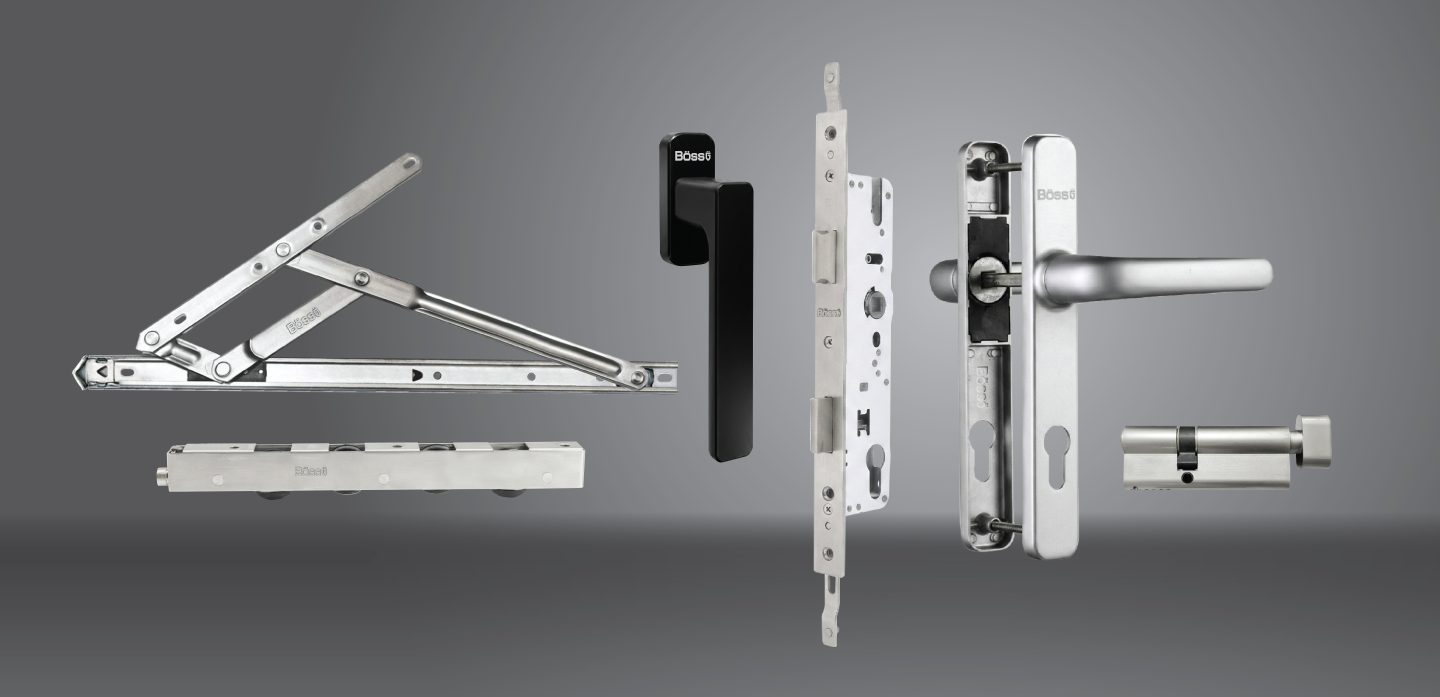

Door's Accessory
Shutter curtain, hardware and gaskets that ship with the system
Hardware is sold with the profile it was tested against. A system that passes a 25,000-cycle test only holds that number with the hinge and gasket it was tested on, so the two travel together.
The same rule puts the roller shutter range here: a shutter is quoted as a set, because the operator is sized against the weight of the curtain it lifts rather than against the size of the opening.
40 products in this family
Multipoint Lock
3, 5 or 7 point · 35 mm backset · stainless keeps
Hooks and rollers on a single throw. Keeps are stainless because they are the part that stays wet on an exposed entrance.
Lever & Pull Set
Anodised, powder or PVD · pull to 1,800 mm
Matched lever and pull in the same finish batch as the profile, so a door and its handle leave the plant the same colour.
EPDM Gasket Set
Co-extruded · −40 to 120 °C · vulcanised corners
Corners are vulcanised rather than cut and butted, which is where a gasket usually starts leaking after the first thermal cycle.
Concealed Closer
EN 2–4 · in-leaf · hold-open option
Closer housed inside the leaf, invisible when the door is shut. Force is adjustable across EN 2 to 4 without removing the door.

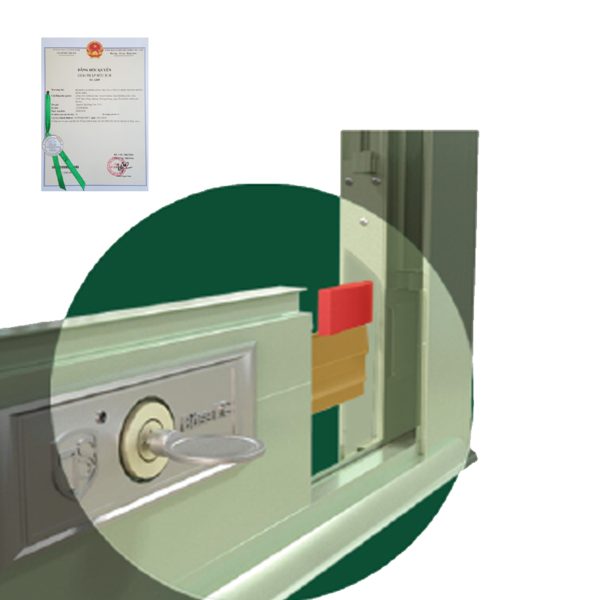

Automatic Latch, 3rd Generation
Throws on close · anti-lift · no supply of its own · mechanical key release
The bolt throws as the curtain lands and withdraws as it lifts, drawing no power, so it still holds through a cut or a flood. A mechanical key releases it when the door has to be raised by hand.

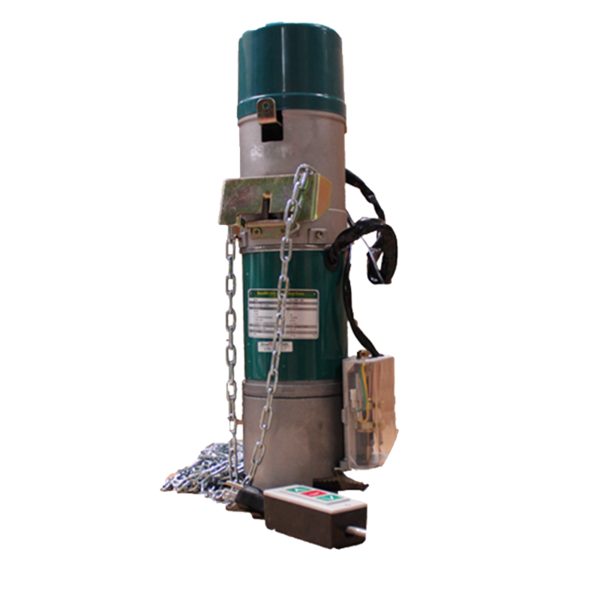

AC Shutter Operator
Single-skin curtains · capacity matched to curtain weight
The AC operator for single-skin curtains. Capacity is chosen against the weighed curtain rather than the opening area, because weight is what actually loads the motor.

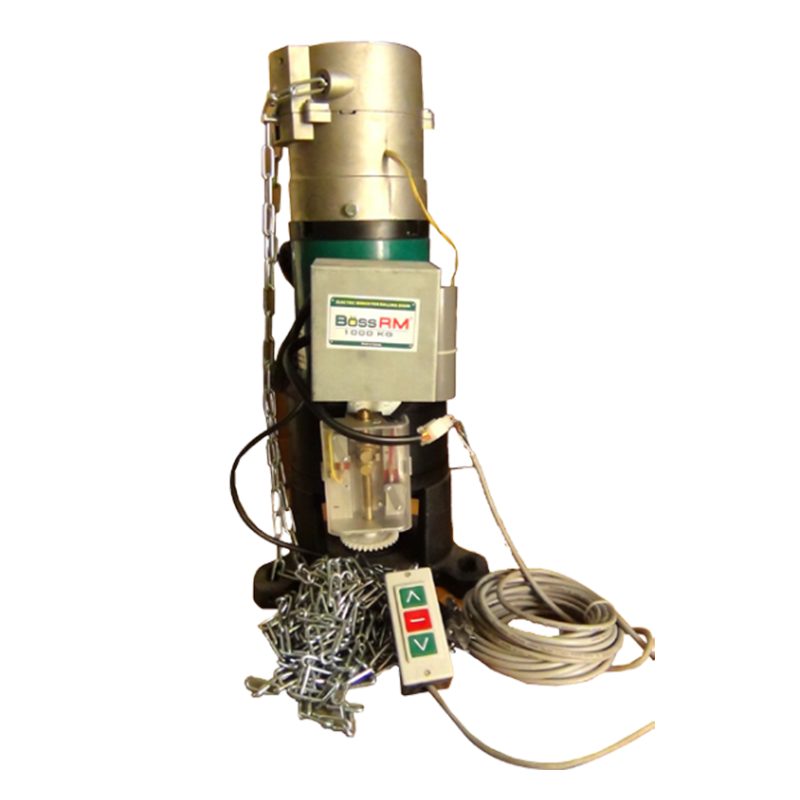

BossRM 1000 Shutter Operator
1,000 kg · openings 35–40 m² · motor, two controls, two flanges, receiver
For wide-span curtains of 35 to 40 m². Supplied with both flanges, since an operator this size is usually set out on the barrel before the curtain is hung.

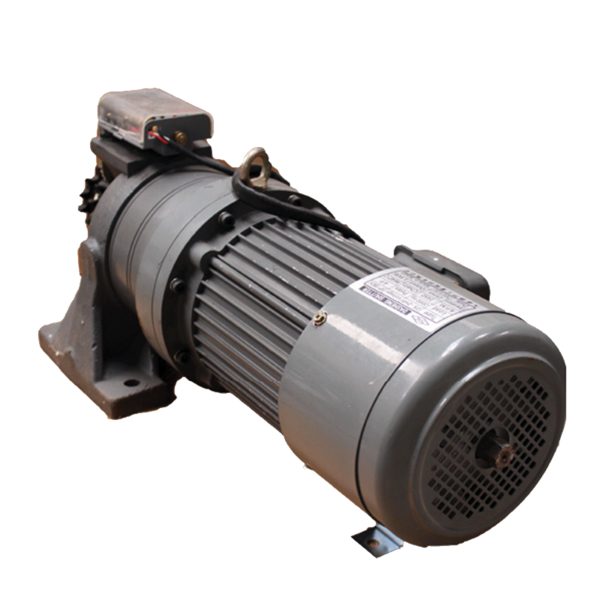

BossRM 2000 Shutter Operator, three phase
2,000 kg · three phase · openings above 40 m² · motor, two controls, two flanges, receiver
Reference BRM.2000. The three-phase operator for industrial curtains past 40 m², which is where a single-phase motor starts running hot on a duty cycle.

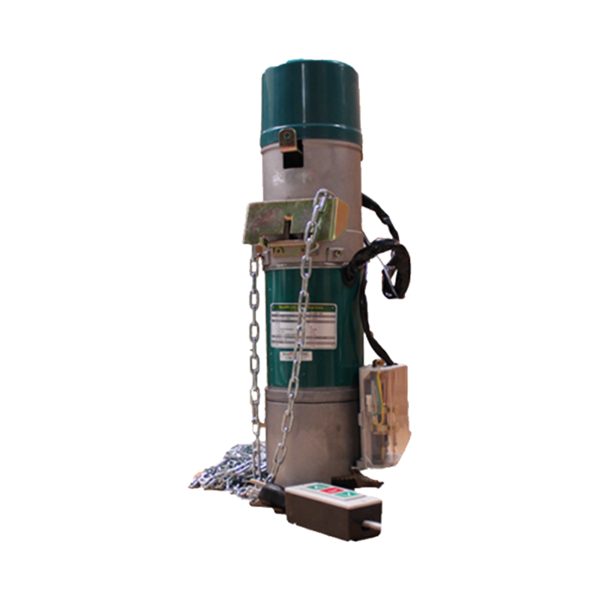

BossRM 300 Shutter Operator
300 kg · openings 15–20 m² · motor, two controls, receiver
The entry operator in the BossRM range, for a domestic opening of 15 to 20 m². Supplied with the control box and receiver it was tuned against.

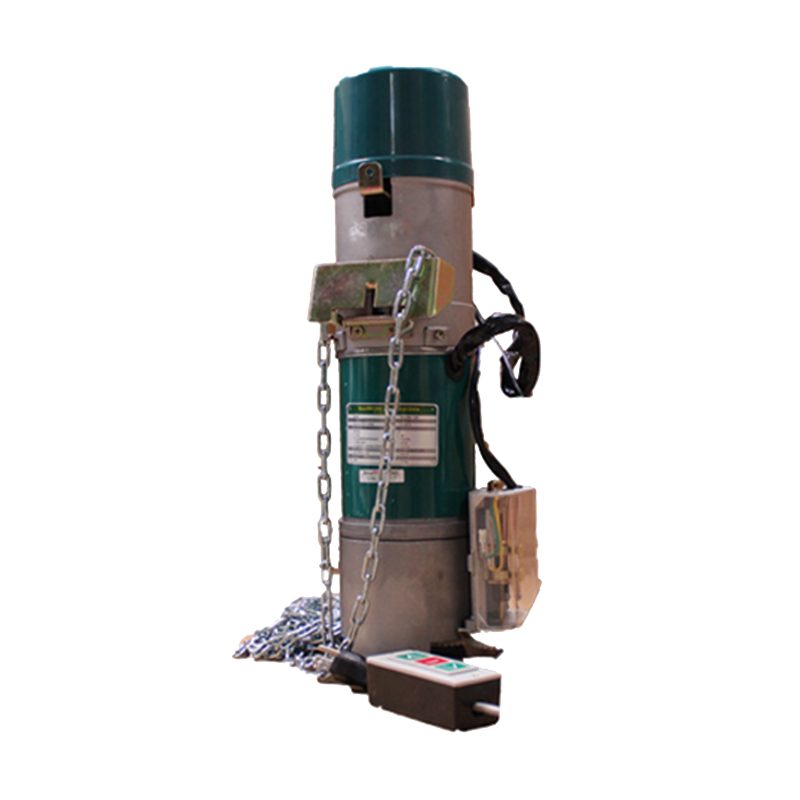

BossRM 500 Shutter Operator
500 kg · openings 20–25 m² · motor, two controls, receiver
For openings of 20 to 25 m². The motor body and the control box are one item: the limits are set at the box, not on the motor, so a service call does not need the curtain dropped.

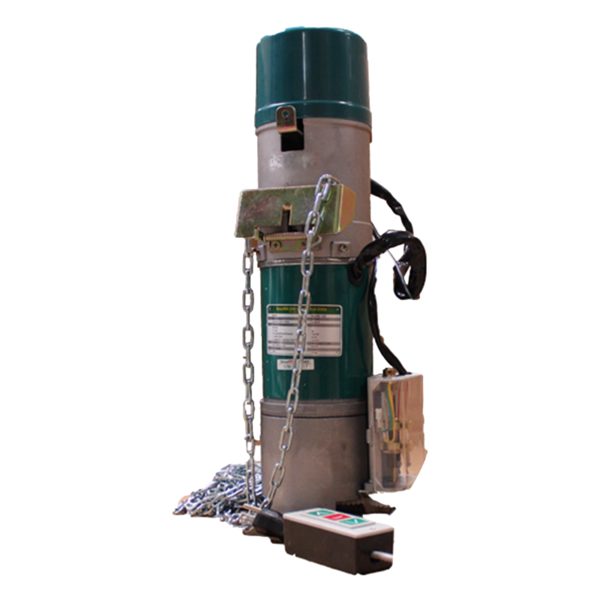

BossRM 700 Shutter Operator
700 kg · openings 25–35 m² · motor, two controls, receiver
The step between the domestic and the wide-span operators, covering 25 to 35 m². Single phase, so it fits a unit without a three-phase supply at the door.
HV Wide-Span DC Operator
Openings above 25 m² · hand lift on power failure · motor, two controls, receiver
The DC operator for hand-lift single-skin curtains past 25 m², where the standard DC unit runs out of travel rather than out of torque.

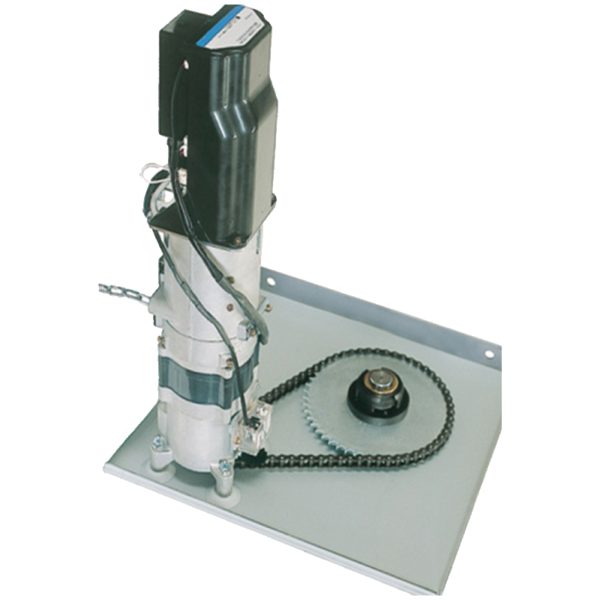

Kasankie DC 300 Shutter Operator
300 kg · motor, two controls, two flanges, receiver
The 300 kg unit in the Kasankie DC range. Several power steps share one mounting, so a door that gains weight in refurbishment takes the next motor up without new flanges.

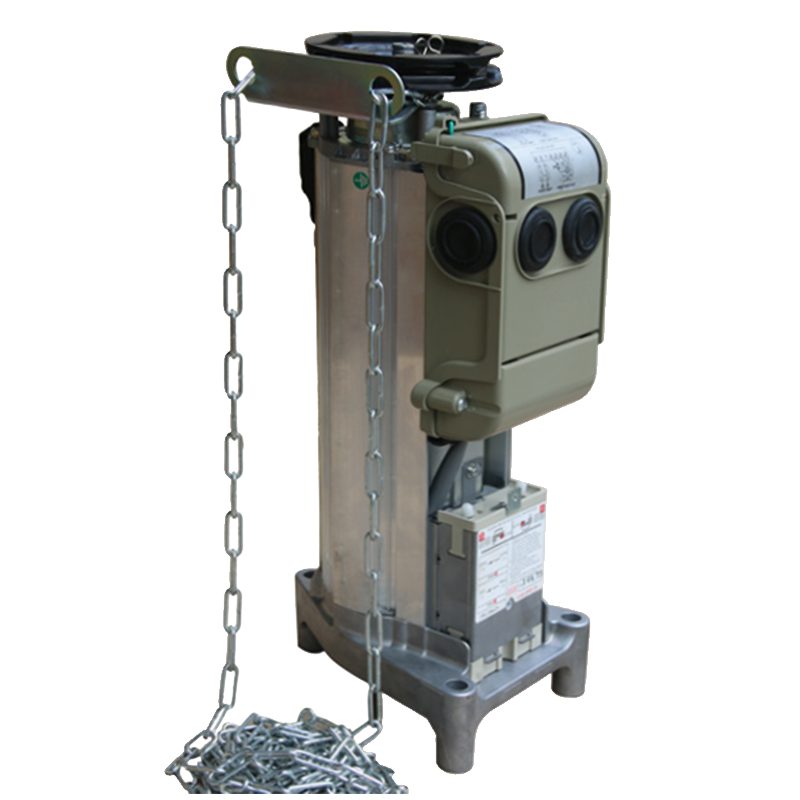

Kasankie DC 400 Shutter Operator
400 kg · openings 15–20 m² · motor, two controls, two flanges, receiver
The 400 kg unit, covering openings of 15 to 20 m² on the same mounting as the 300.
Kasankie Eco 300 Shutter Operator
300 kg · brake housing turns through 360° · left or right hand
The brake housing rotates through a full turn, so one part number handles a left-hand and a right-hand installation instead of two.
Kasankie Eco 500 Shutter Operator
500 kg · brake housing turns through 360° · left or right hand
The 500 kg unit in the Eco range, on the same rotating brake housing as the 300.

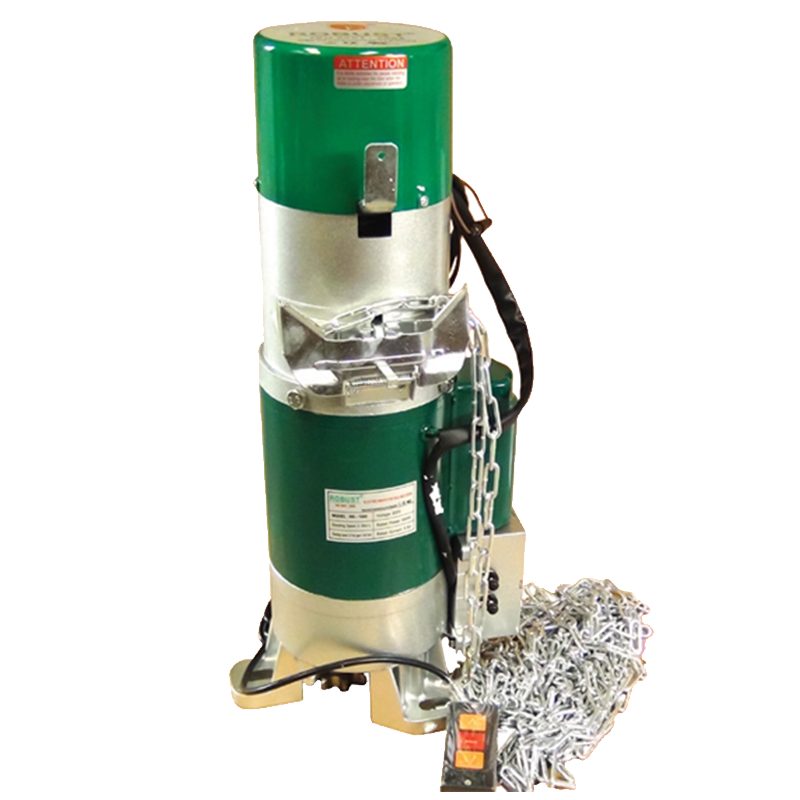

Robust 1000 Shutter Operator
1,000 kg · openings 35–40 m² · motor, two controls, two flanges, receiver
The largest single-phase unit in the Robust range, for curtains of 35 to 40 m².
Robust 400 Shutter Operator
400 kg · openings to 15 m² · motor, two controls, two flanges, receiver
The 400 kg operator for openings up to 15 m² — a house, a garage or a showroom front. Paired to the handset at the control box.

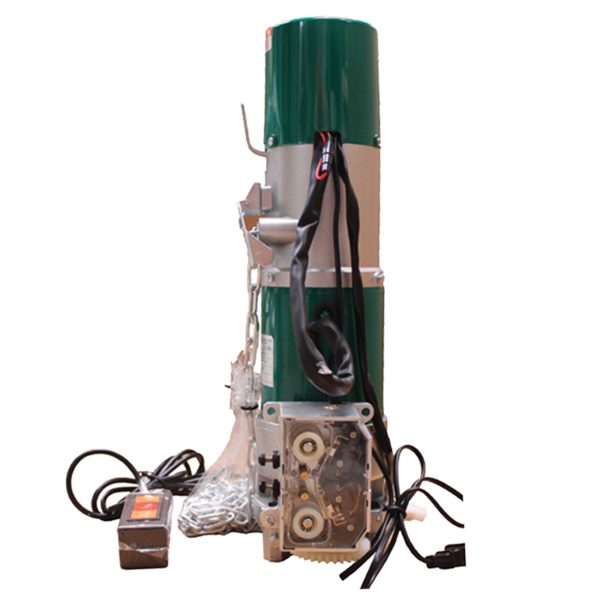

Robust 600 Shutter Operator
600 kg · openings 20–25 m² · motor, two controls, two flanges, receiver
For openings of 20 to 25 m², one step above the 400 on the same mounting.

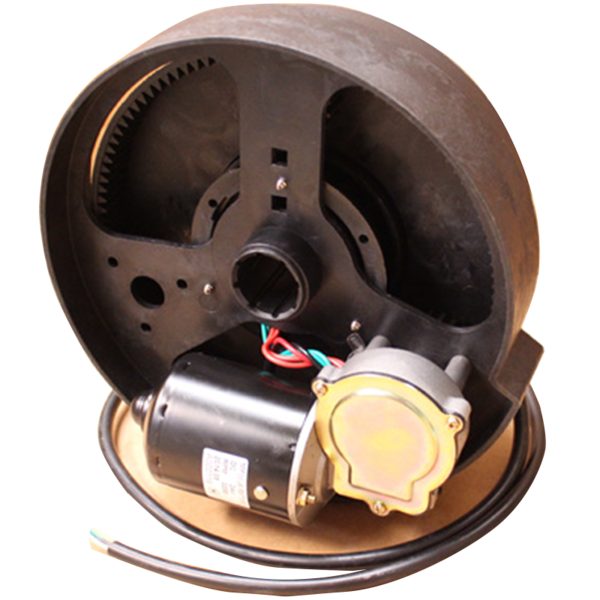

Robust DC Single Operator
Single-skin curtains · hand lift on power failure · motor, two controls, receiver
The single version of the same DC operator, for a smaller single-skin curtain. Same hand lift on a power failure.

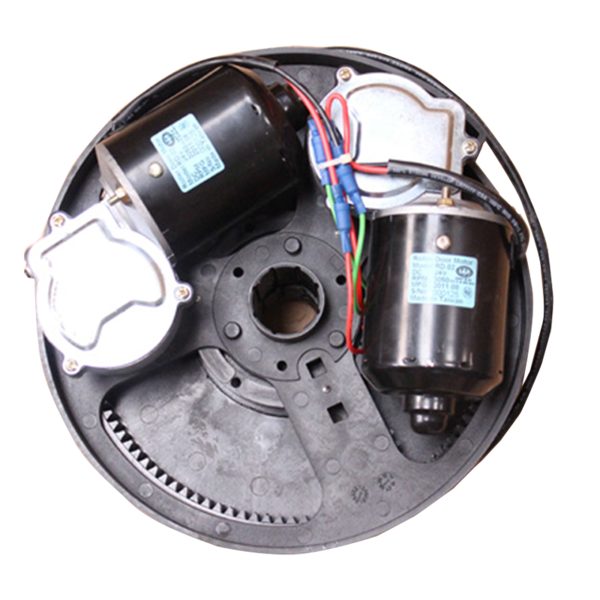

Robust DC Twin Operator
Openings 12–30 m² · hand lift on power failure · motor, two controls, receiver
A twin DC operator for single-skin curtains between 12 and 30 m². On a power failure the curtain lifts by hand without a release to find first.

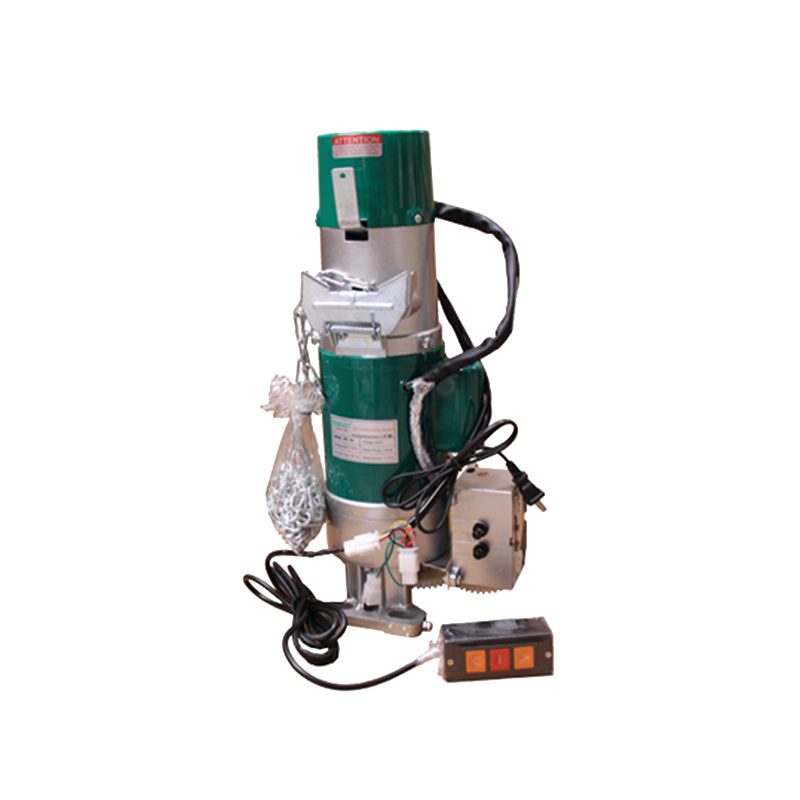

Robust ECO 400 Shutter Operator
400 kg · motor, two controls, two flanges, receiver
The economy build of the 400 kg operator. Same capacity and the same remote pairing; fewer options at the control box.

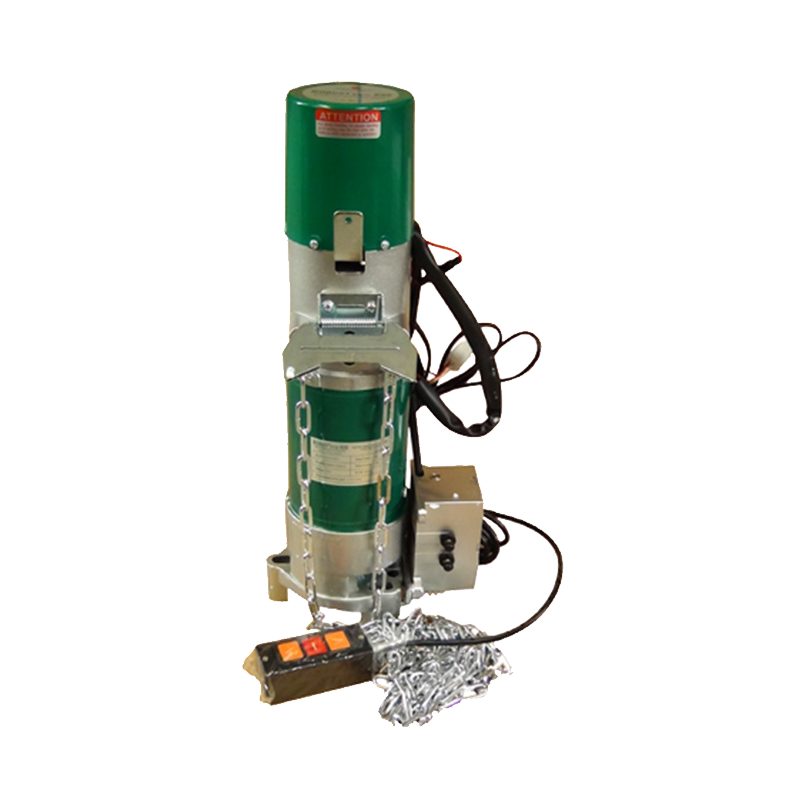

Robust ECO 600 Shutter Operator
600 kg · openings 20–25 m² · motor, two controls, two flanges, receiver
The economy build at 600 kg, covering openings of 20 to 25 m².

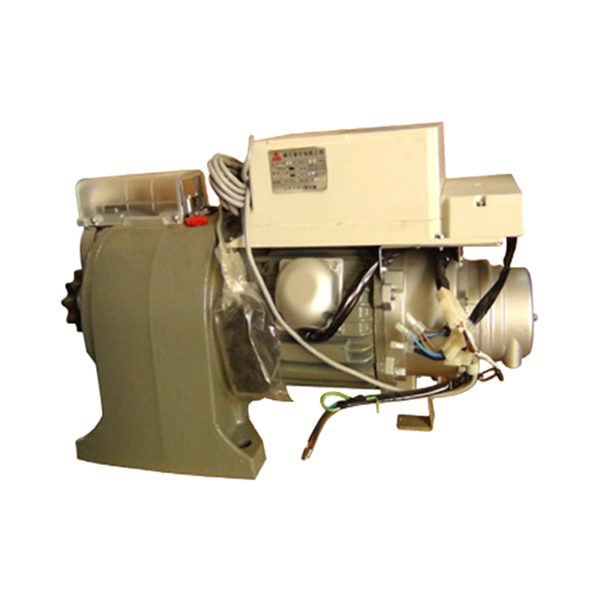

YH 1300 Shutter Operator, three phase
1,300 kg · three phase · openings 40–45 m² · motor, two controls, two flanges, receiver
The three-phase unit for curtains of 40 to 45 m², supplied with the control box and receiver as one set.

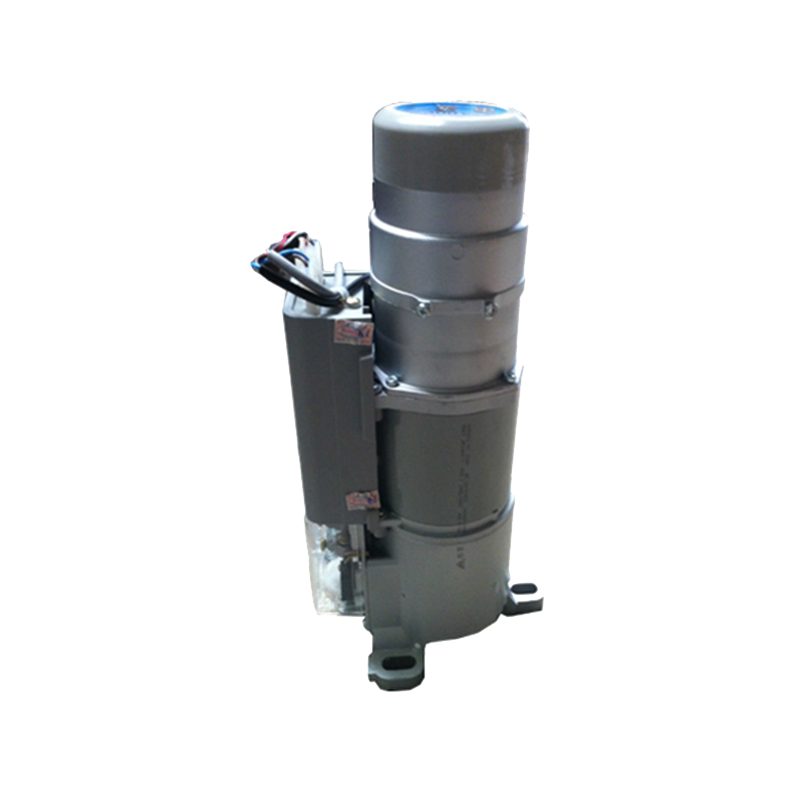

YH 300 Shutter Operator
300 kg · openings to 15 m² · motor, two controls, two flanges, receiver
The 300 kg operator for openings up to 15 m², on the same four-part pack as the rest of the range.

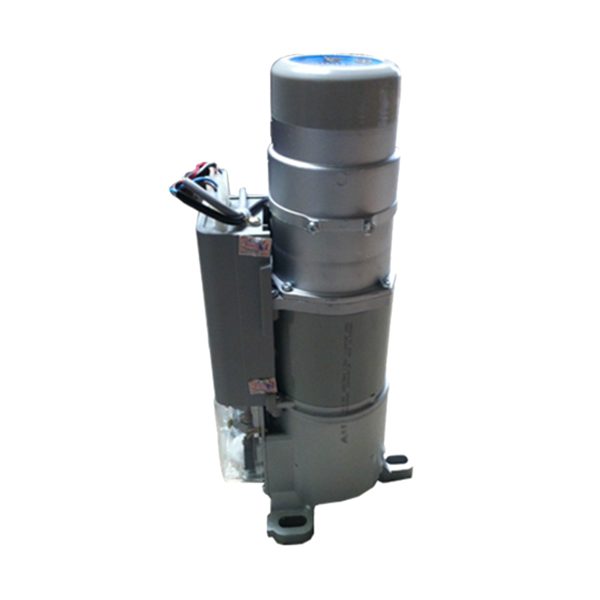

YH 400 Shutter Operator
400 kg · openings 15–20 m² · motor, two controls, two flanges, receiver
For openings of 15 to 20 m² — house, garage or showroom fronts.

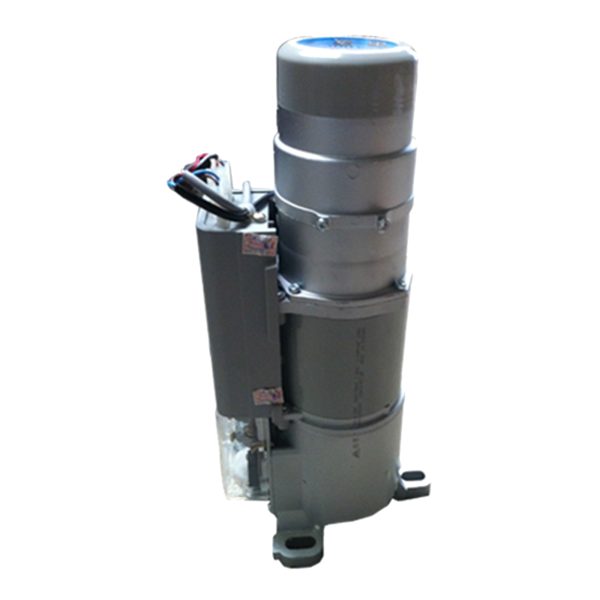

YH 500 Shutter Operator
500 kg · openings 20–25 m² · motor, two controls, two flanges, receiver
For openings of 20 to 25 m², one step above the 400 on the same mounting.

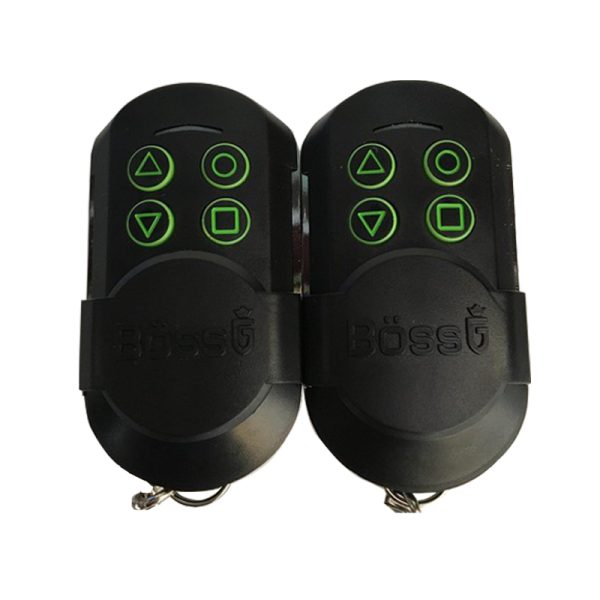

Rolling-Code Handset
Rolling code (ARC) · paired to the control box · replaceable on site
Every cycle retires the code it just used and issues the next one, so a captured transmission will not open the door twice. Handsets pair to the control box, not to the motor, so a lost handset is cleared without opening the headbox.
BS-2550 Battery Back-up
600 VA · 150–250 V in, 220 V out · 8 × 3.2 V / 6 Ah LiFePO₄ · motors to 400 kg
Lithium iron phosphate rather than lead-acid: 2,000 charge cycles against 500, and above 80% of rated capacity at the end of them. Standby is 32 to 48 hours. Case 281 × 195 × 58 mm, with overload and short-circuit protection.
BS-2580 Battery Back-up
1,200 VA · 150–250 V in, 220 V out · 8 × 3.2 V / 15 Ah LiFePO₄ · motors to 800 kg
The larger of the two back-up units, for motors up to 800 kg and a standby of 48 to 72 hours. Case 295 × 252 × 63 mm, with overload and short-circuit protection.
BO57.0325 Vented Slat
6063-T5 · 1.0–1.6 mm ±5% · opening to 6.0 × 5.5 m
The heavy end of the standard vented range. Perforations run the length of the slat, so a closed shutter still moves air across a shopfront that trades with the front down.
BO5816.0325 Vented Slat
6063-T5 · vented · two-way felt seal
Hooks and load points were redrawn on this section and the guide carries a two-way felt seal. Both changes are about noise on the way down rather than about strength.
BO601.0325 Vented Slat
6063-T5 · 1.0–1.2 mm ±5% · opening to 5.0 × 5.0 m
The 2025 revision of the standard vented slat. It holds the same opening range as the section it replaces on a thinner gauge and a tighter thickness tolerance.

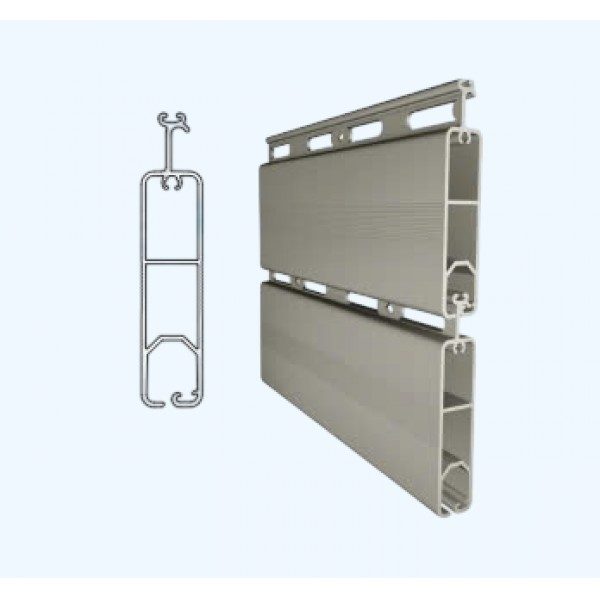

BO602.0325 Vented Slat
6063-T5 · 0.8–1.1 mm ±5% · opening to 4.5 × 4.5 m
The lightest slat in the range, for openings up to 4.5 m square. Vented on the standard pitch and held in light grey as the stock finish.

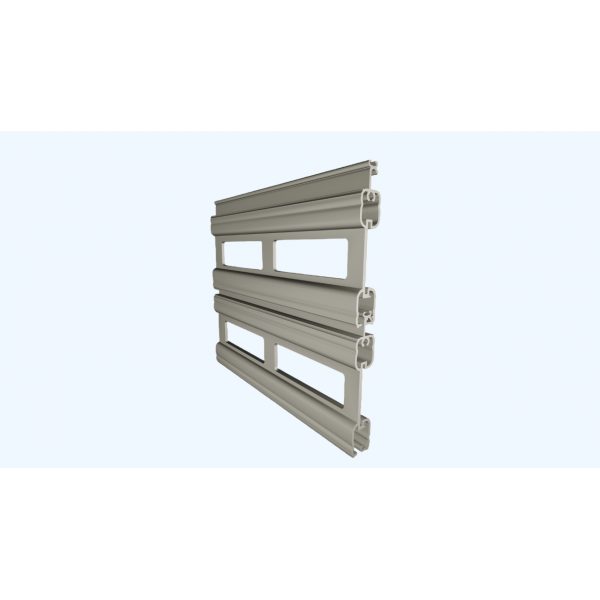

BO68S.0325 Clear-View Slat
Clear-view slat · gauge and finish to order
An open slat for a shopfront that has to stay visible when it is shut. Gauge and finish are set against the opening rather than held as a stock combination.
BO90A.0325 Wide-Span Slat
Wide-span section · anti-lift latch · obstacle reverse
The wide-span section for openings past the domestic range. The latch engages as the curtain lands, so a closed door cannot be levered up at the bottom rail.
CD.100 Wide-Span Slat
6063-T5/T6 · 1.5–2.5 mm ±5% · opening to 10.5 × 10.0 m
The largest section in the range, closing an opening up to 10.5 m wide. Slat ends are capped in three layers, which is the joint that takes the wear on a door this size.

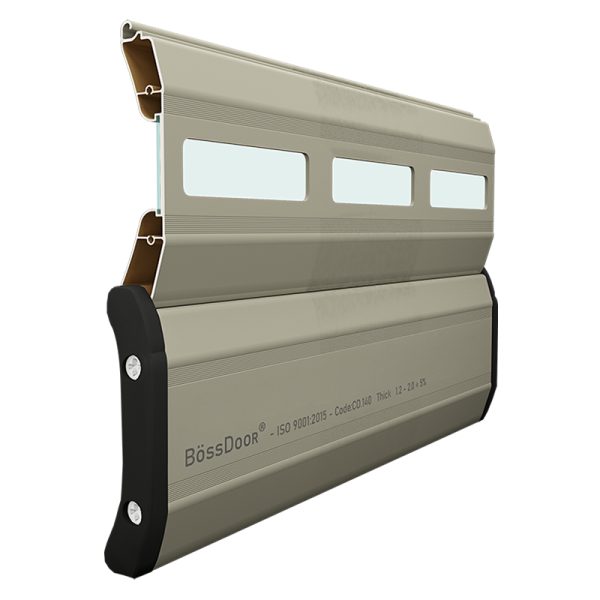

CD.140NT Wide-Span Slat
6063-T5/T6 · curved face · removable translucent vent inserts
A wide-span slat with a curved face and oversized vents. The inserts are translucent and come out, so the same door runs closed and lit, or closed and open to the air.
CD.80 Wide-Span Slat
6063-T5/T6 · 1.4–2.0 mm ±5% · opening to 8.5 × 8.0 m
The middle wide-span slat, thickened in 2020 over the section it replaced. Powder coated on the automatic line; light grey is the stock colour.
